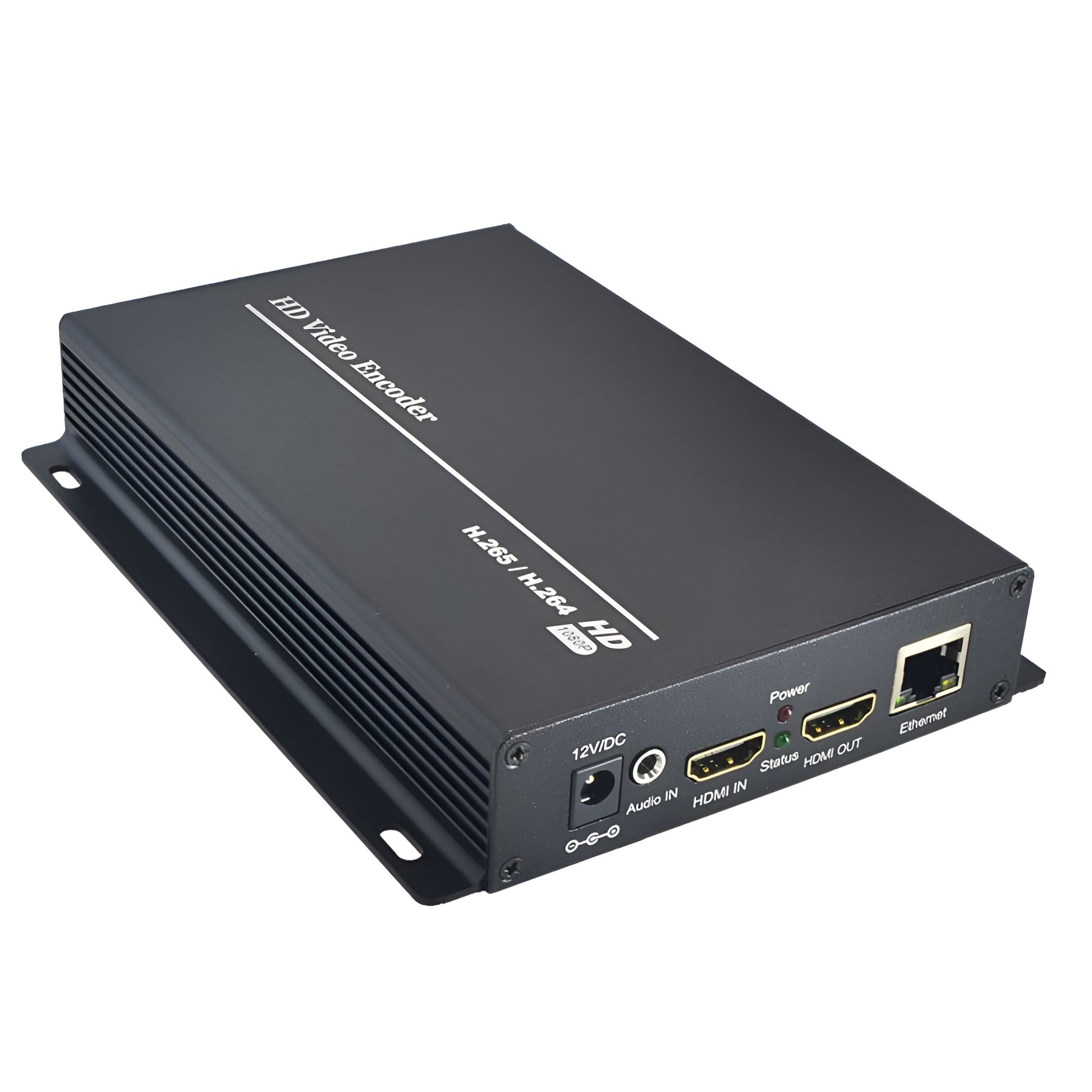

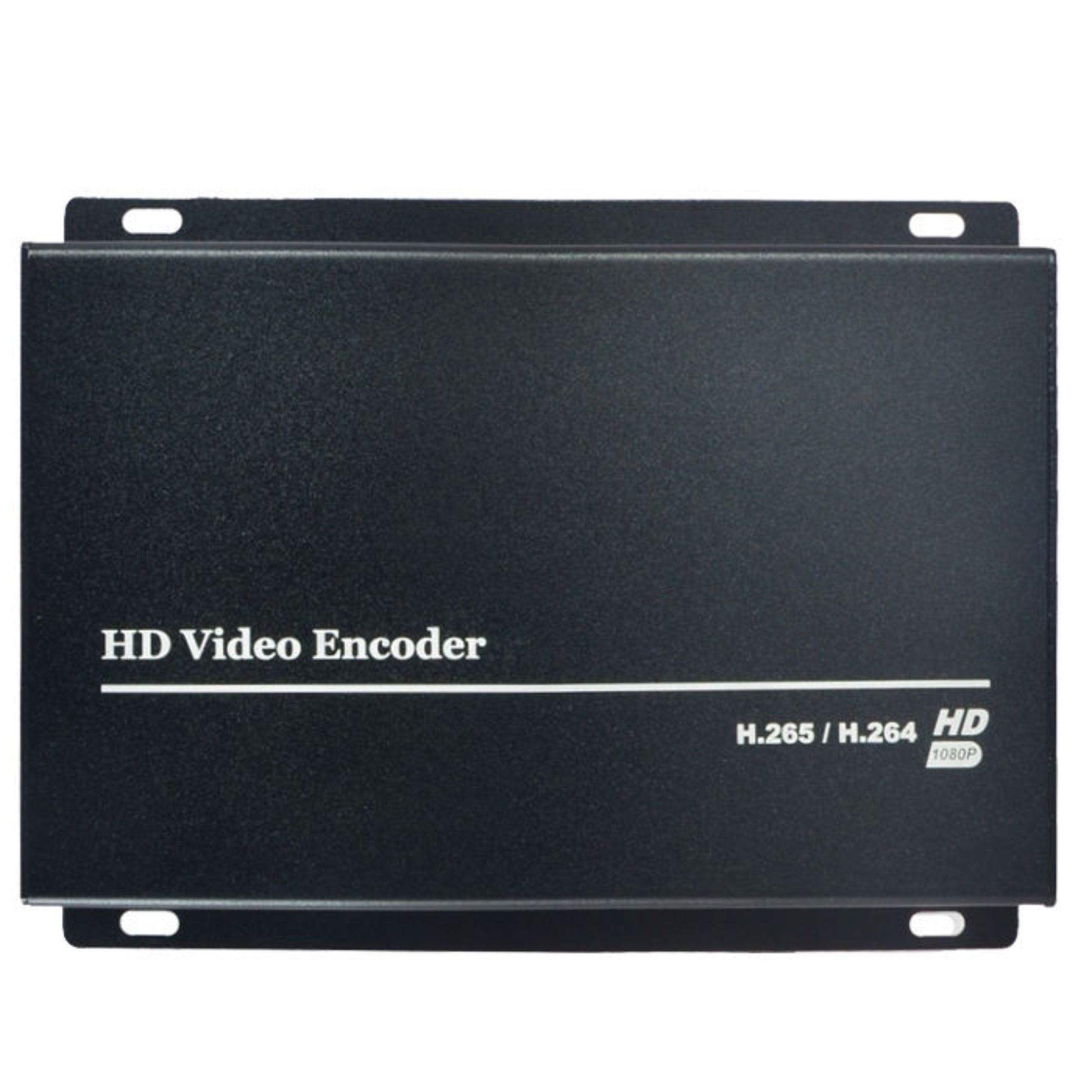

StreamForge UltraEncode Pro HD Video Encoder

The StreamForge UltraEncode Pro HD Video Encoder is a high-performance hardware encoder designed for professional live streaming, broadcasting, and IP video distribution. Housed in a rugged, heat-dissipating metal enclosure, this encoder delivers reliable, low-latency H.264/H.265 video compression for mission-critical applications. Ideal for studios, event venues, surveillance systems, and streaming platforms, it ensures stable, high-quality video delivery over local networks or the internet.

Specifications

• Material: Industrial-grade aluminum alloy housing with passive cooling fins

• Dimensions: 20 cm (L) x 13 cm (W) x 4.5 cm (H)

• Features: H.264/H.265 encoding, HDMI input/output, audio embedding, IP streaming

• Video Input: HDMI up to 1080p60

• Network Interface: Gigabit Ethernet (RJ45) for LAN and WAN streaming

Features

• Professional H.265/H.264 Encoding: Delivers efficient compression with excellent image quality

• Low-Latency Streaming: Optimized for real-time broadcast and live event production

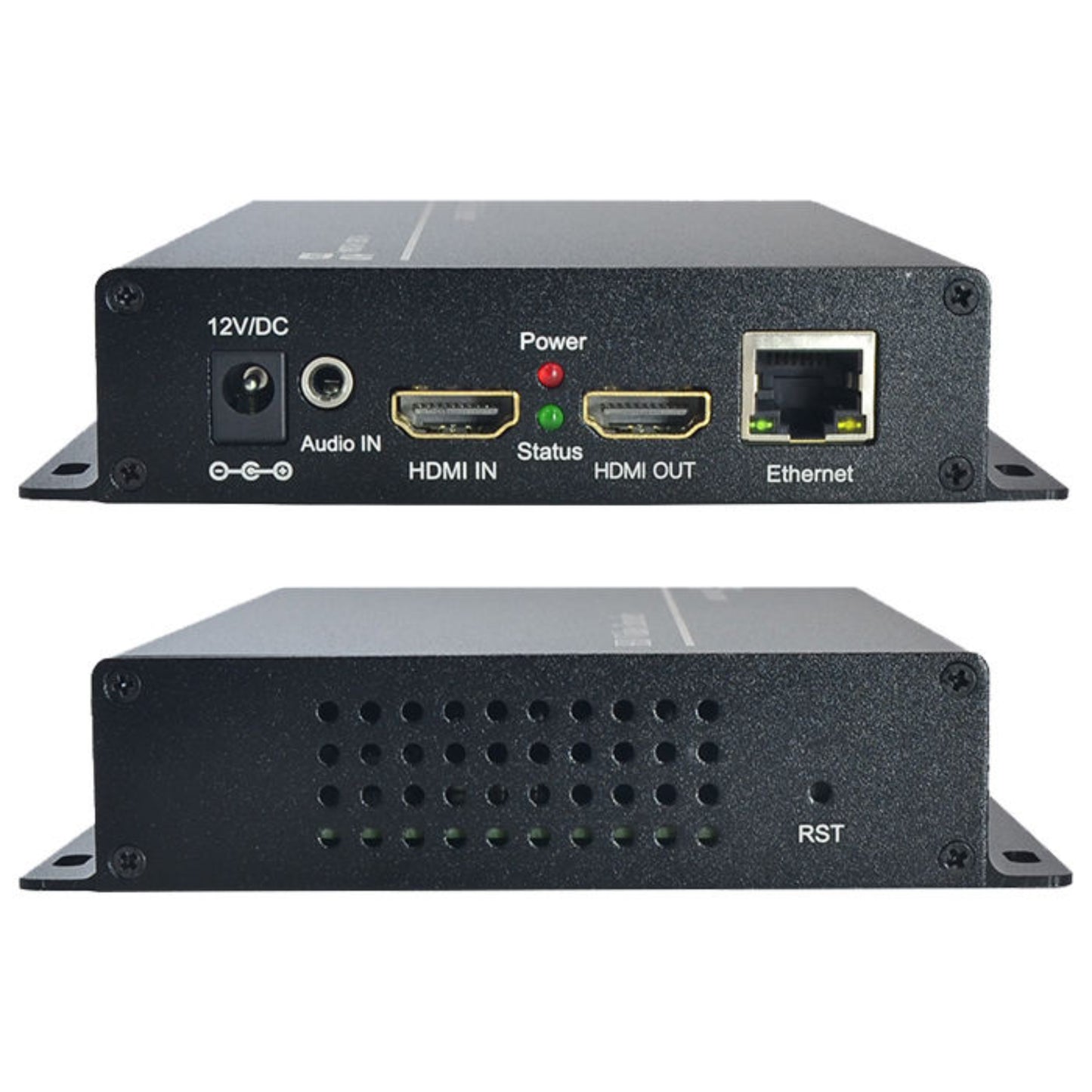

• HDMI Loop Output: Allows local monitoring while streaming over IP

• Audio Embedding Support: Accepts external audio input for synchronized sound and video

• Flexible Streaming Protocols: Compatible with RTMP, RTP, RTSP, and HTTP delivery

• Rugged Fanless Design: Silent operation with enhanced reliability for 24/7 use

Maintenance

• Daily: Ensure proper ventilation and verify stable power and network connections

• Weekly: Inspect HDMI and Ethernet ports for dust or loose connections

• Annually: Update firmware, review encoding profiles, and perform a full system test

Warranty

• Encoder Hardware: 3 years

• Internal Electronics & Ports: 2 years
